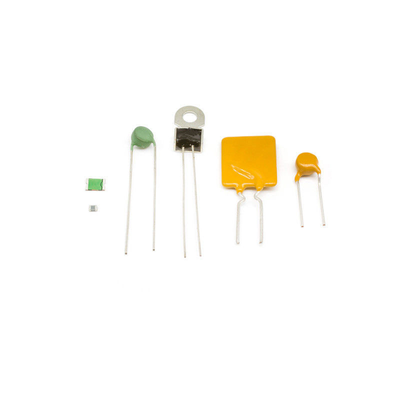

100 Ohm 60C PTC Thermistor 16V PTC Temperature Sensor For Amplifier Audio

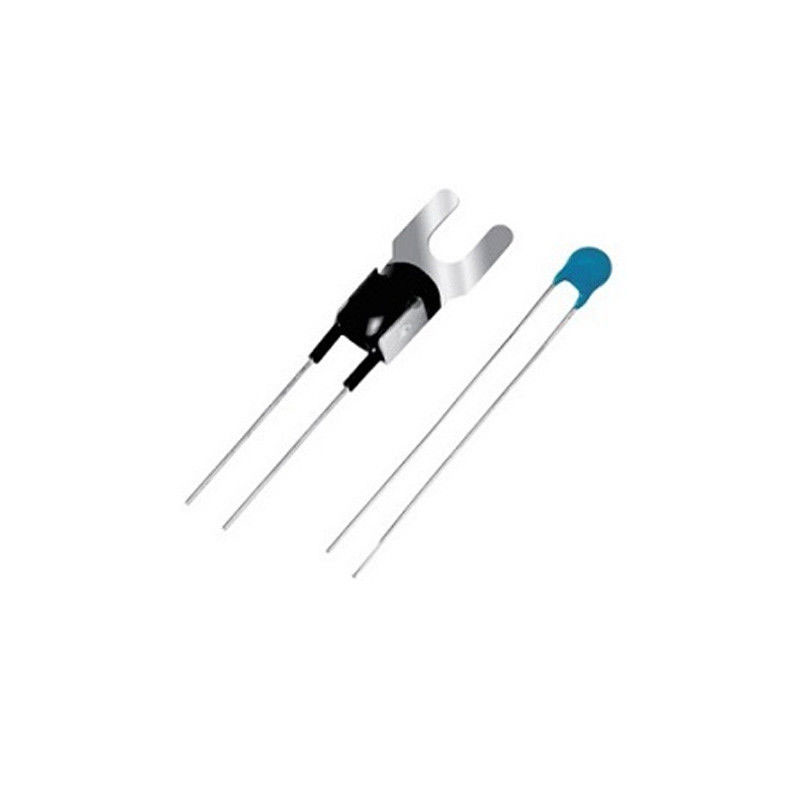

Bracket Fixed U Frame PTC Thermistor 60C Limit Temperature Sensor For Amplifier Audio
A PTC Thermistor Limit Temperature Sensors Features
· Outlook construction: A-radial leaded epoxy resin coated form, B-metal tag lug form.
· Screw type metal cases or other construction can be made upon customer request.
· PTC thermistor Protection temperature 60C to 130C. 60C, 70C, 80C, 90C, 100C, 110C, 120C, 130C.
· Quick response.
· Long stability.
· Small dimension, convenient for installation.
· Do not need to be reset after protection.
B Dimension Of The Bracket Fixed U Frame PTC Thermistor
C Electrical Performances Of The Bracket Fixed U Frame PTC Thermistor
| Item | Max.voltage (V) | Curie point(℃) | Temperature sensing (℃) | Resistance when temperature at 25℃ (Max)(ohm) | Resistance when temperature sensing at -10 ℃(Max) | Sensing temperature resistance (Min) |
| MZ3-40C100RM60T | 16 | 40 | 60 | 100 | 330ohm | 470ohm |
| MZ3-50C100RM70T | 16 | 50 | 70 | 100 | 330ohm | 470ohm |
| MZ3-60C100RM80T | 16 | 60 | 80 | 100 | 330ohm | 470ohm |
| MZ3-70C100RM90T | 16 | 70 | 90 | 100 | 330ohm | 470ohm |
| MZ3-80C100RM100T | 16 | 80 | 100 | 100 | 330ohm | 470ohm |
| MZ3-90C100RM110T | 16 | 90 | 110 | 100 | 330ohm | 470ohm |
| MZ3-100C100RM120T | 16 | 100 | 120 | 100 | 330ohm | 470ohm |
| MZ3-40C330RM60T | 16 | 40 | 60 | 330 | 1.5k ohm | 2.2k ohm |
| MZ3-50C330RM70T | 16 | 50 | 70 | 330 | 1.5k ohm | 2.2k ohm |
| MZ3-60C330RM80T | 16 | 60 | 80 | 330 | 1.5k ohm | 2.2k ohm |
| MZ3-70C330RM90T | 16 | 70 | 90 | 330 | 1.5k ohm | 2.2k ohm |
| MZ3-80C330RM100T | 16 | 80 | 100 | 330 | 1.5k ohm | 2.2k ohm |
| MZ3-90C330RM110T | 16 | 90 | 110 | 330 | 1.5k ohm | 2.2k ohm |
| MZ3-100C330RM120T | 16 | 100 | 120 | 330 | 1.5k ohm | 2.2k ohm |

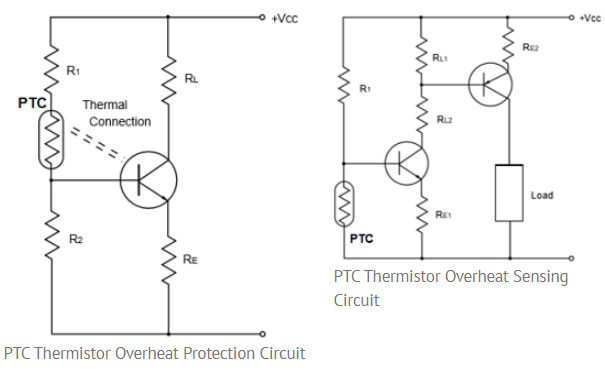

D PTC Thermistors for Overheat Sensing Protection Circuit Examples
E PTC Thermistors Limit Temperature Sensor for Industrial Application
A PTC thermistor can be used effectively to detect whether a temperature limit in industrial equipment, liquids, etc, is exceeded.
The PTC thermistor is mounted in thermal contact with the medium that has to be protected from overheating.
When the rated temperature limit of the medium is reached, the resistance of PTC thermistors increases abruptly.
In connection with a control unit, this signal can be used to automatically switch the power supply of a load.
F Typical Application of PTC thermistors Temperature Limiting Sensors
· Limit temperature measurement of Industrial electronics application.
· Power supplies, switch power supply.
· Home appliances, such as dish washers, washing machines, ironing machines, electric cookers, etc.
· Electronic data processing and communications engineering (DC/DC converters).
· Motor windings overheating Protection.
· Automotive electronics.
· Semiconductor heatsinks, enclosure panels, temperature-limited transistors.
· Lighting applications.
